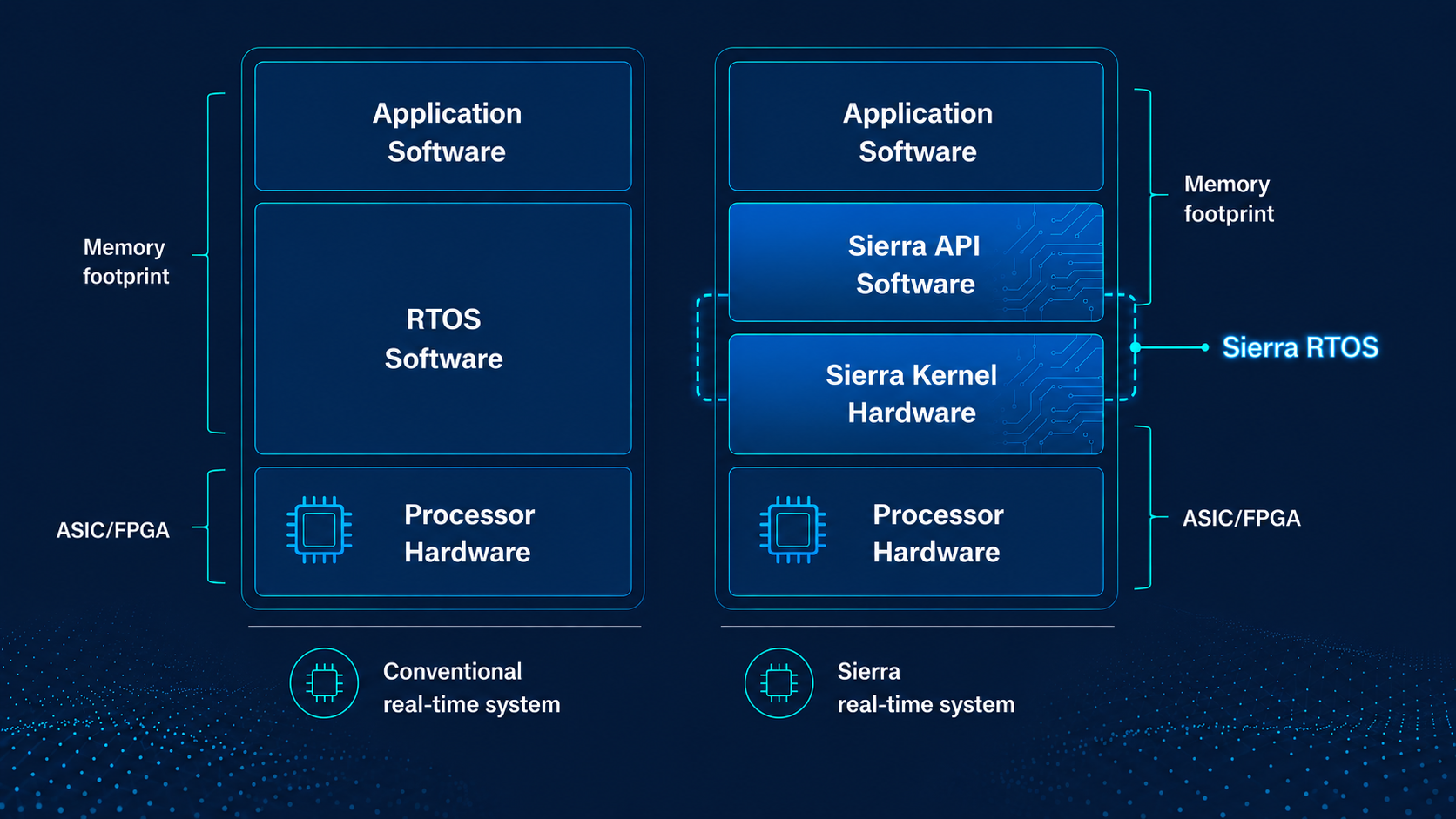

The Sierra hardware RTK component together with its API (Application Programmers Interface) makes a complete real-time kernel and can be used stand-alone or as a hardware accelerator for commercial OS. Easy integrated as an IP core with a defined interface.

- Introduction and background to Sierra concept – (627kb)

Key Features:

ö A Complete Real-Time Kernel (RTK) »
A unique solution, implemented in hardware, which use the mass parallelism in hardware. Scheduler, time queues etc. in hardware.

ö A tiny footprint in memory »
With a user-friendly application programmers interface in C. The footprint is very small since the functionality is placed in hardware instead.

ö Time predictable and Performance Enhancing »
The hardware kernel works in parallel to the CPU. With speed-up and less overhead and jitter as a result. The most service calls to Sierras takes 2-4 clock cycles to execute. Deadline control under run time in hardware for periodic tasks. No clock tick administration overhead.

ö Easy system integration »
Faster time to market (FPGA).

ö Enhanced performance and security »
Simplifies real-time analyze and behaviorally safe in hardware.

ö Smart Period task with deadline control in hardware

ö Flexible and new possibilities »
Simple to add on new advanced functions to Sierra framework.

ö Support and courses »
Theory and practical training.

ö Results from more than 20 years research!

More information:

· Product Specification and Data Sheet

· Short overview of all service call from Sierra

· Example Code

· User SW Manual (part of the manual)

· More information

Overview of standard Sierra products:

	Sierra_8	Sierra_16	Sierra_32	Max Configuration
#tasks and #Priorities	8 and 8	16 and 16	32 and 32	512 and 512
#Binary Semaphores and #Flags	8 and 8	16 and 16	32 and 32	1024 and 1024
#Delay,  and Periodic tasks with deadline control	8 and 8	16 and 16	32 and 32	512 and 512
Base time (divide the device clock for RTK clock tick)	1000*(1 – 65535)	1000*(1 – 65535)	1000*(1 – 65535)	4 000 000 000
Smart IRQ Management	2 IRQs	8 IRQs	16 IRQs	max 512 IRQs
Running task id  led	Yes	Yes	Yes	Yes
HW start of blocked task	Yes	Yes	Yes	Yes

Multiprocessor, change or new functions and monitoring functions are possible to add on Sierra framework.

Single Design License
Restricts License to use Sierra IP component in only one design without time restriction. Number of IP Core instances within design is unlimited. Design is implemented unlimited quantities into ASIC or FPGA devices.

Order procedure
Please contact Mia.

Deliver (Single Design License):

	Sierra_8, 16 or 32 tasks
Net list and documentation	Please contact us
VHDL code and also documentation of the hardware.	Please contact us.
Application specific Sierra	About 5000 EUR for each change. Tasks > 32, flags >32 etc.
New functions/driver/IP functionalities	Please contact us.
Startup help	Please contact us.
